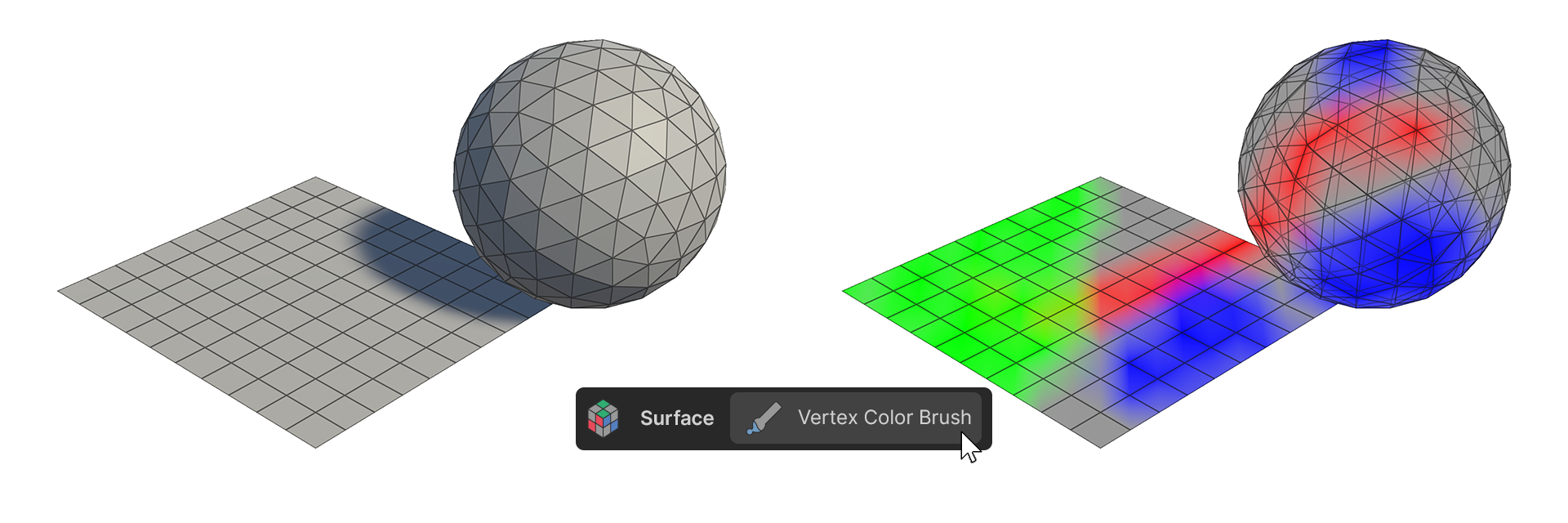

Vertex Color Brush Tool

The Vertex Color Brush tool is a brush-like tool that applies vertex color to vertices.

How to Use

1.Run the Vertex Color Brush tool.

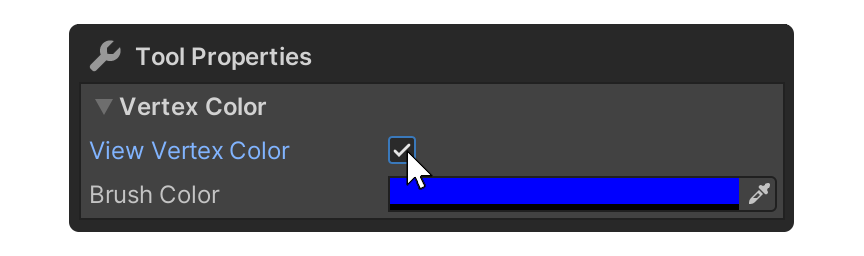

2.Enable the View Vertex Color property, which will display the object's vertex colors.

3.Click on the Brush Color property to change it to the desired color.

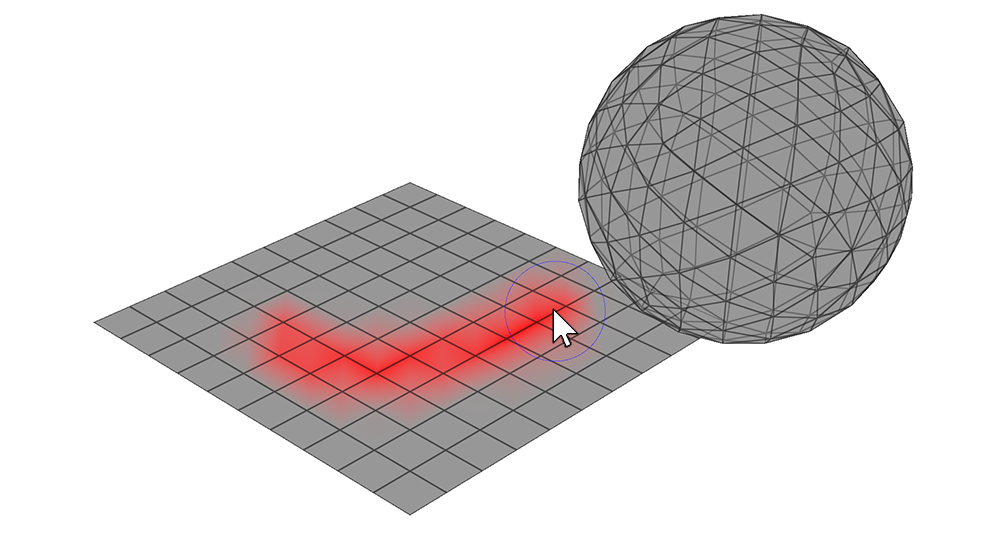

4.Move the mouse cursor over the vertices of the object, thenClick-Dragto paint the vertex color.

---

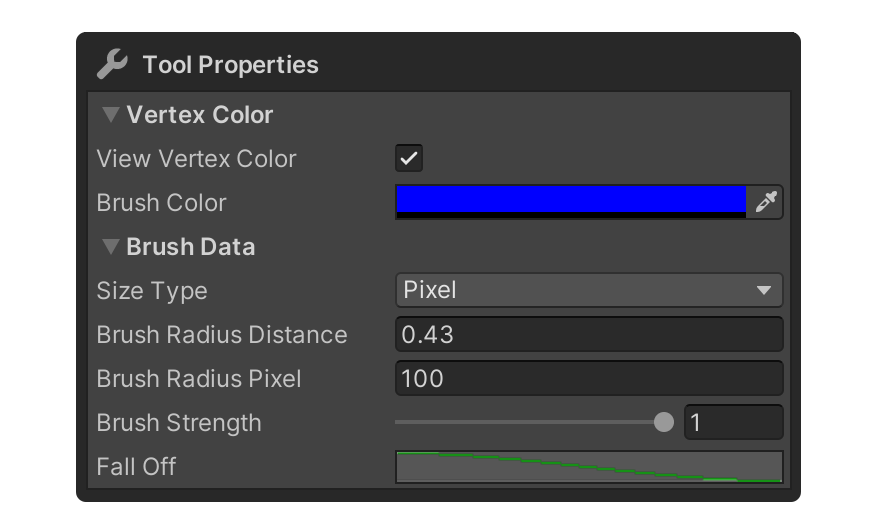

Properties

VertexColor

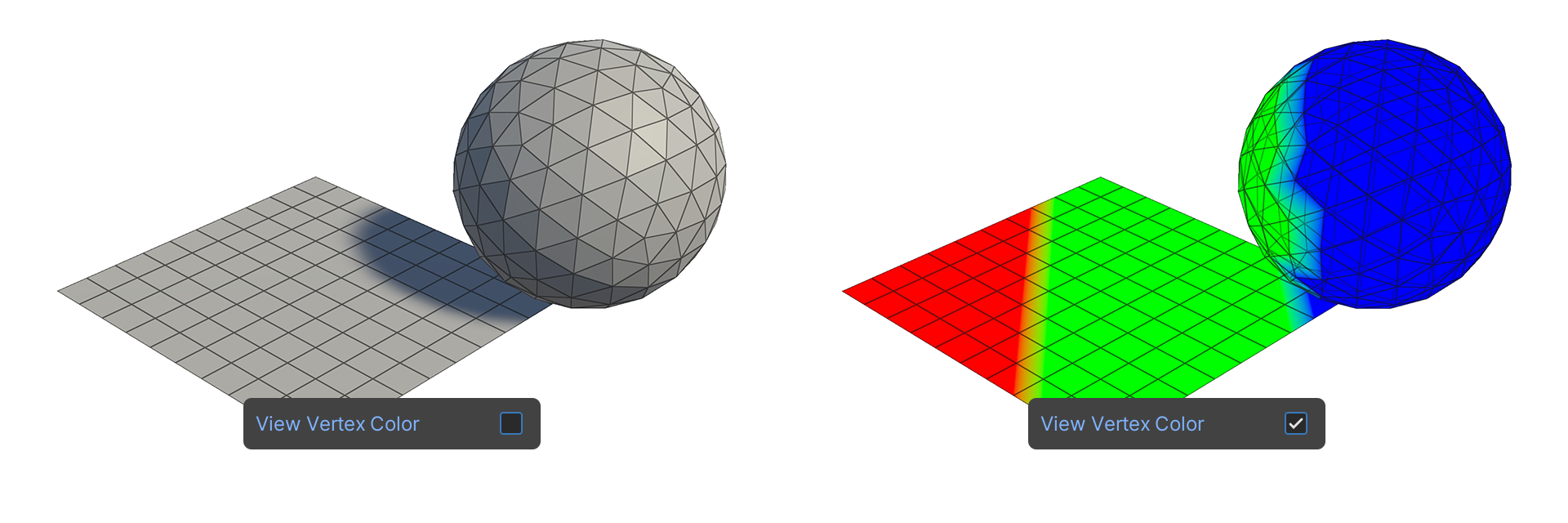

View Vertex Color

Property that displays the object's vertex color.

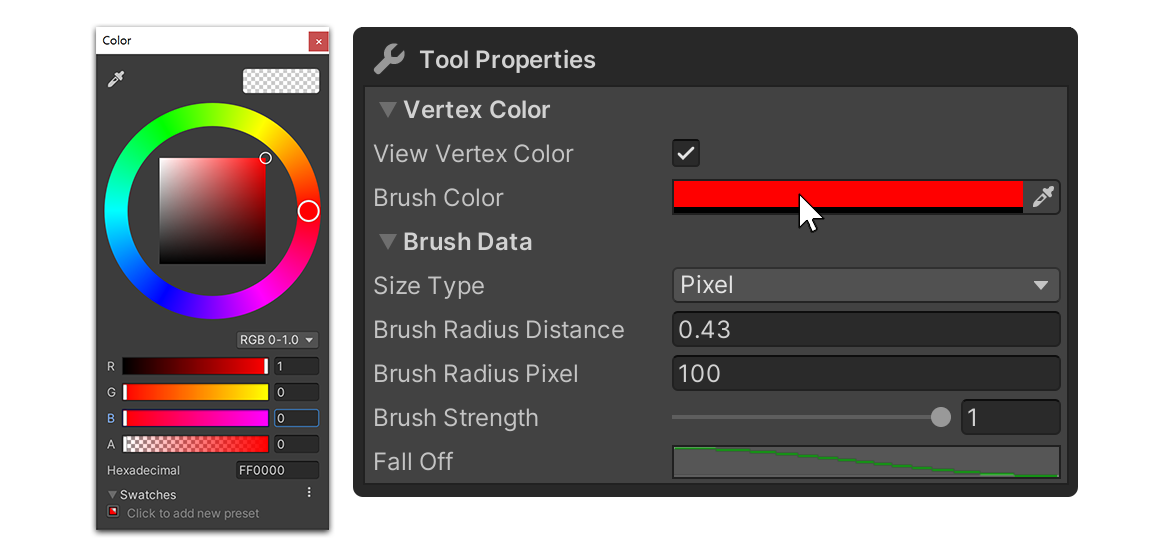

Brush Color

Property that allows you to specify the vertex color.

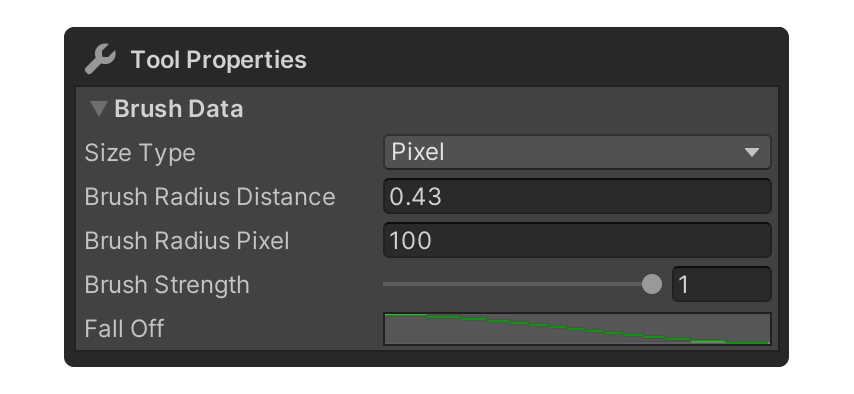

Brush Data

Properties that control the size and intensity of the brush.

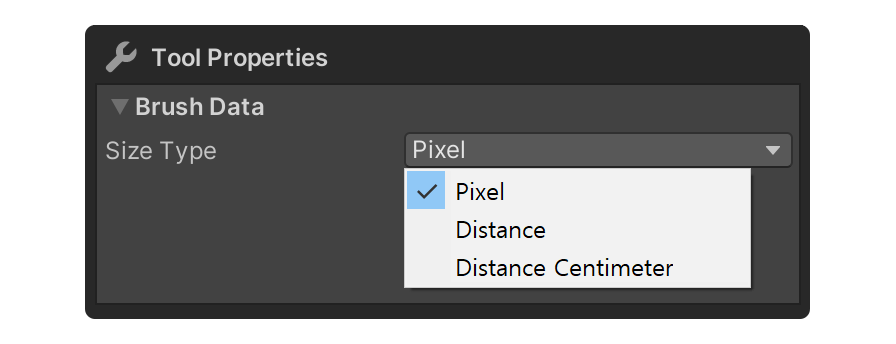

Size Type

This property selects what the brush size is based on.

Pixel

This property determines the size of the brush in pixels.

You can set the size in the Brush Radius Pixel property.

Distance

This property determines the size of the brush relative to its size in the world.

You can set the size in the Brush Radius Distance property.

Distance Centimeter

Determines the size of the brush relative to its size on the world. The unit is centimeters.

You can set the size in the **Brush Radius Distance property.

Brush Radius Distance

This property sets the size of the brush relative to its worldly size.

Available only when the Size Type property is set to Distance, Distance Centimeter.

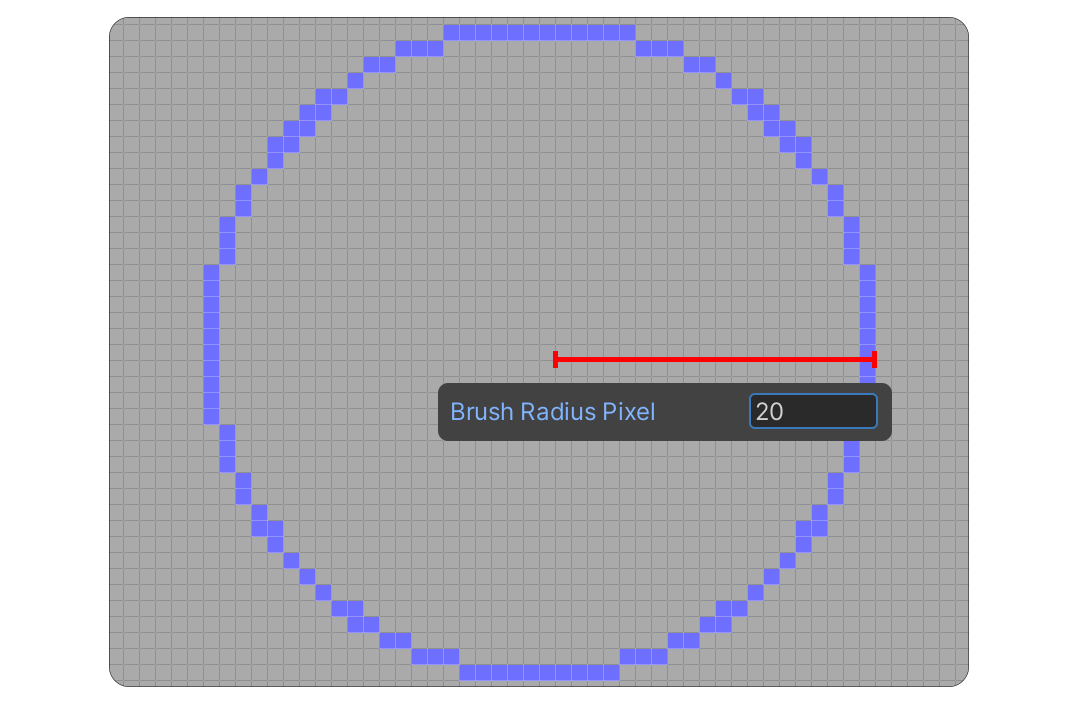

Brush Radius Pixel

This property sets the size of the brush in pixels.

This property is only available when the Size Type property is set to Pixel.

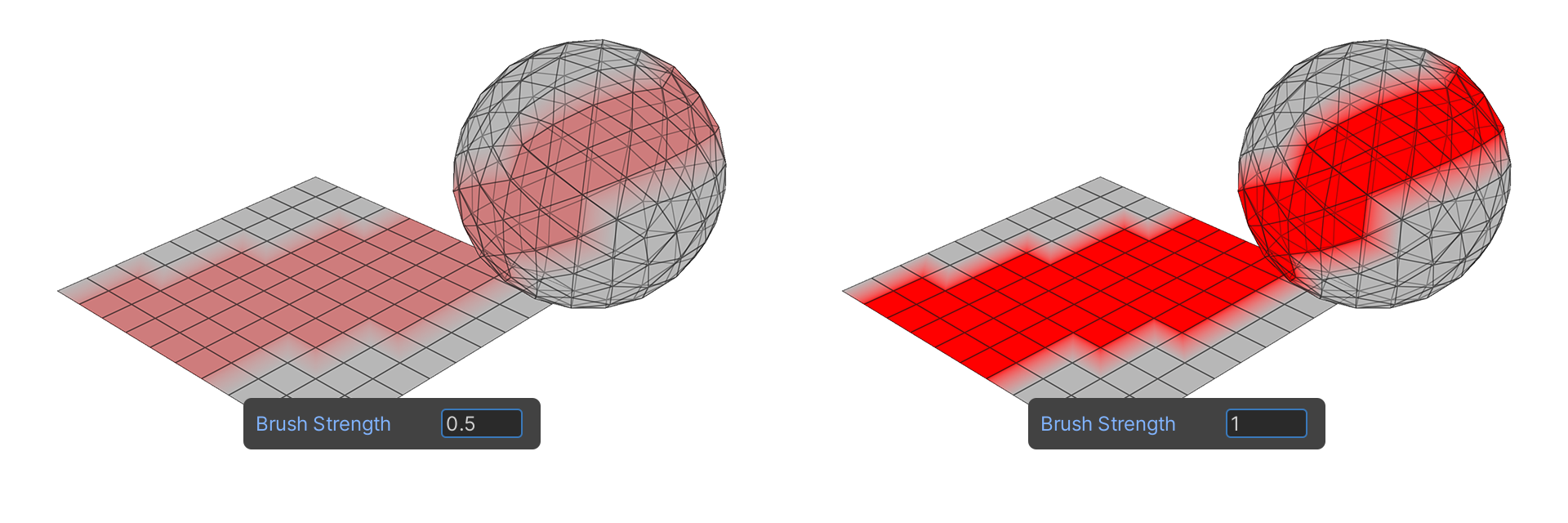

Brush Strength

Property for brush strength.

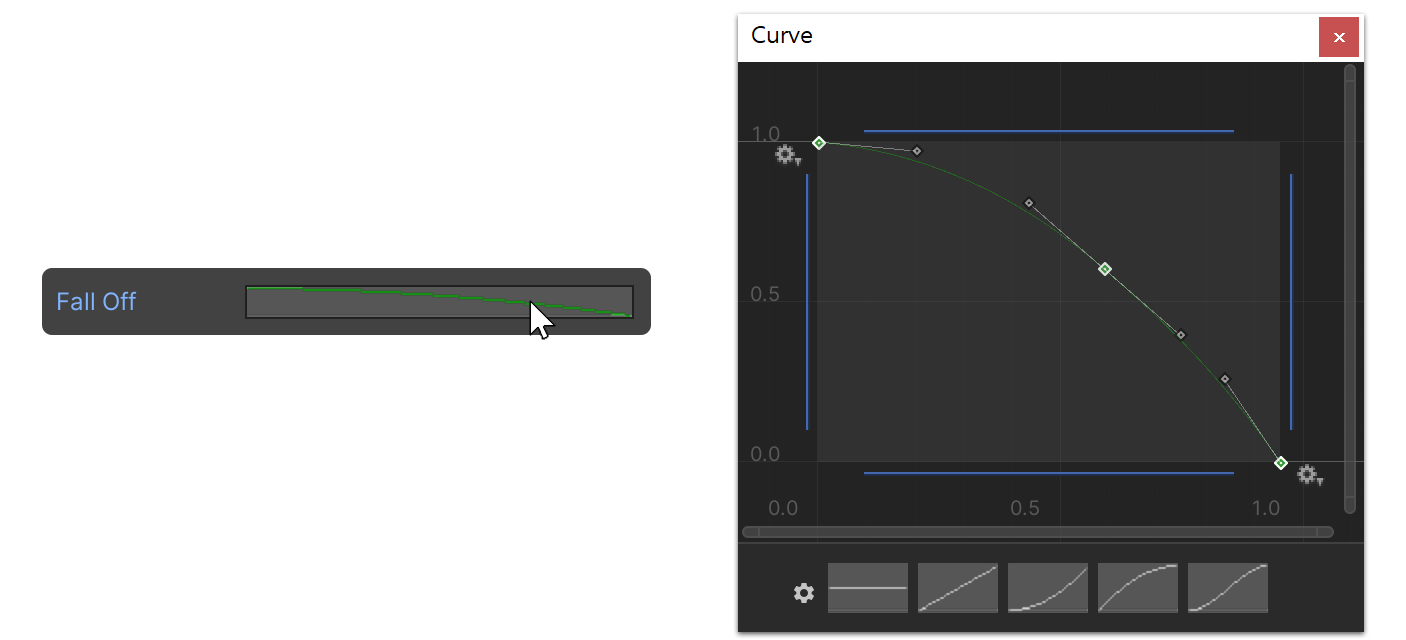

Fall Off

A Graph Type property that determines the shape of the brush. It can be edited by clicking on the graph next to Fall Off.

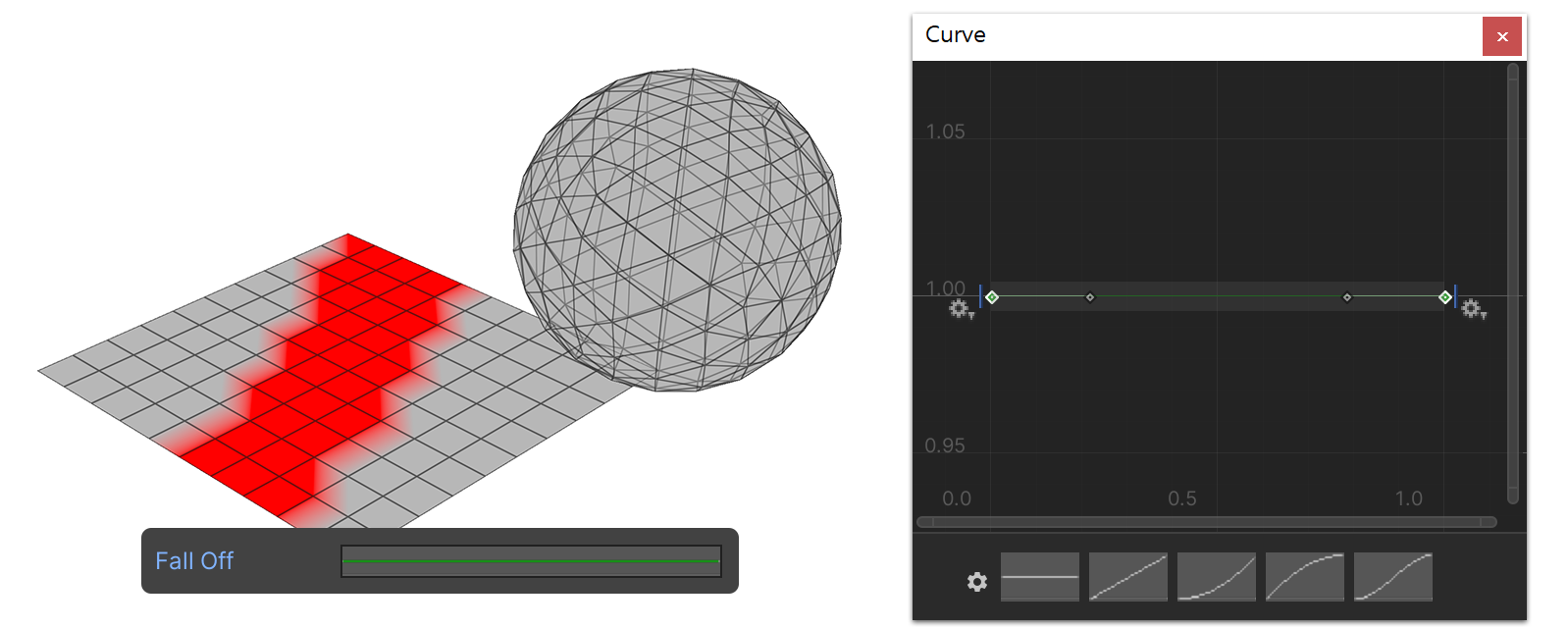

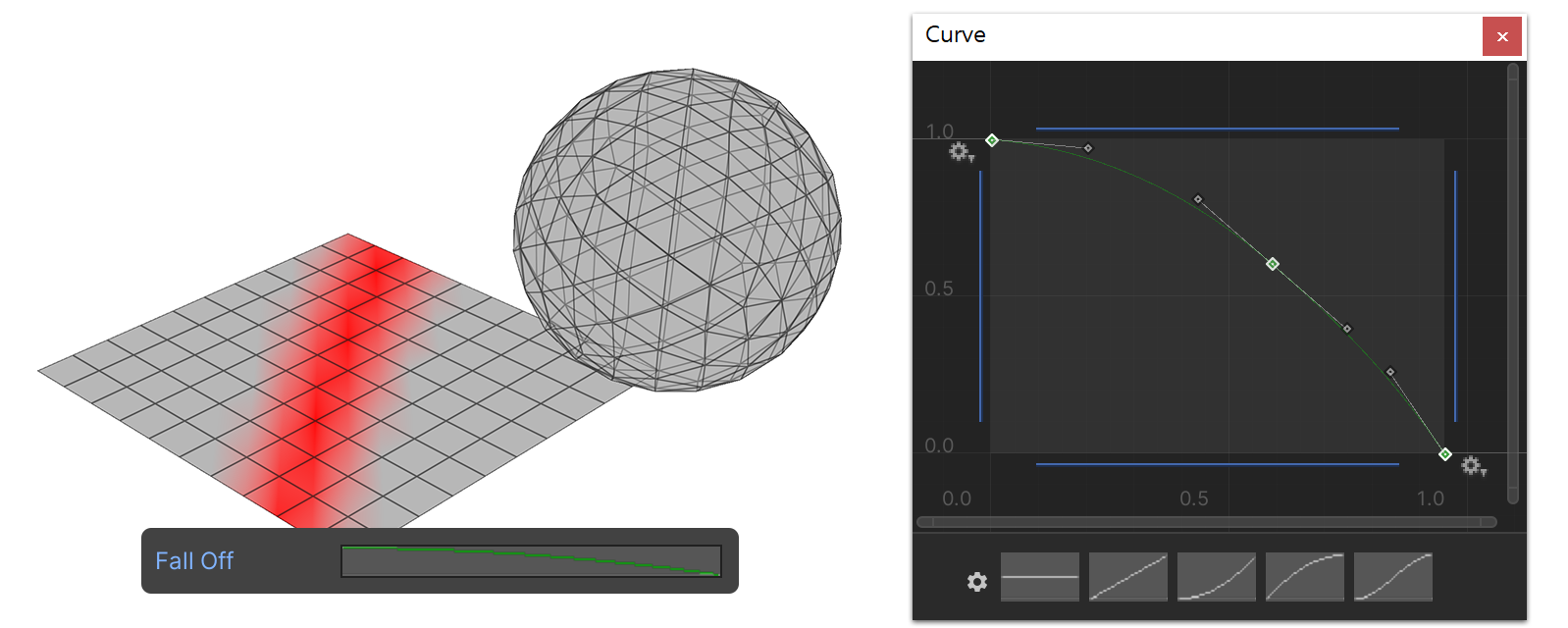

Fall Off Shape Example

Here is an example of how the Fall Off shape changes the appearance of the selection.

---

Example Usage
