Envelope Tool

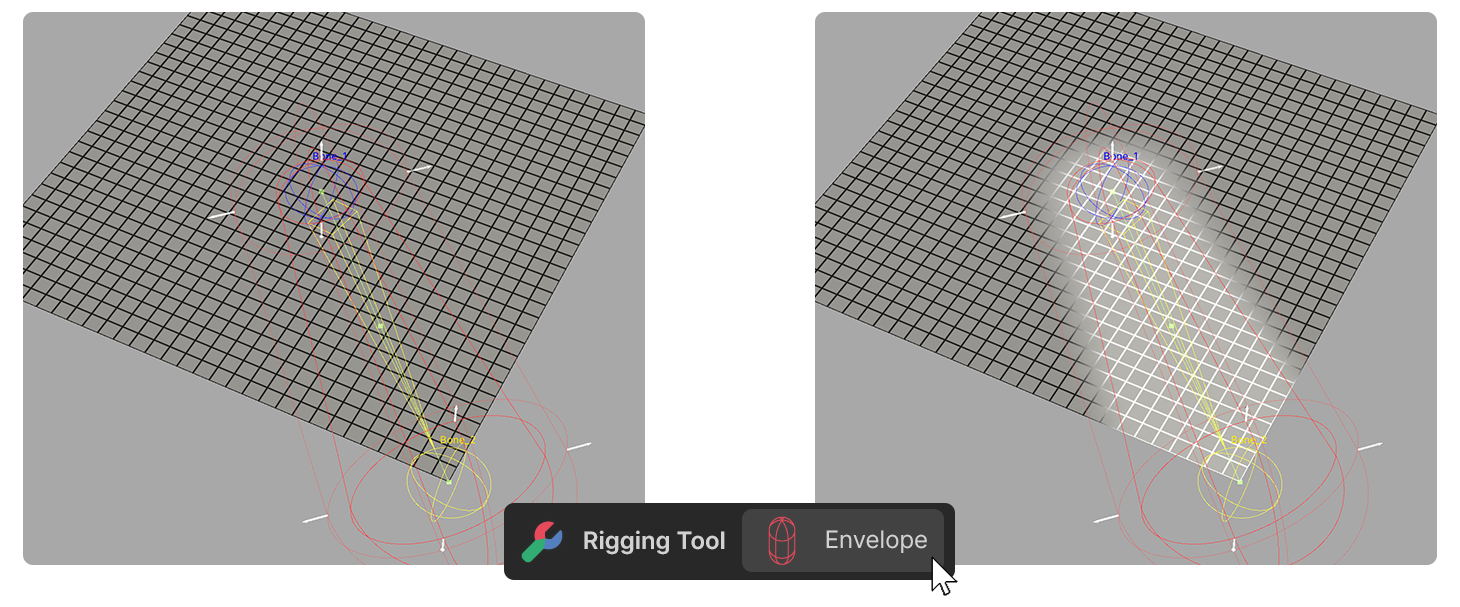

The Envelope tool is a tool for editing an Envelope, which is an encapsulated volume that assigns weights to vertices. Each bone has an envelope, and any vertices that are within or affected by the envelope are assigned a weight.
The Envelope tool is a tool for editing an Envelope, which is an encapsulated volume that assigns weights to vertices. Each bone has an envelope, and any vertices that are within or affected by the envelope are assigned a weight.
How to Use

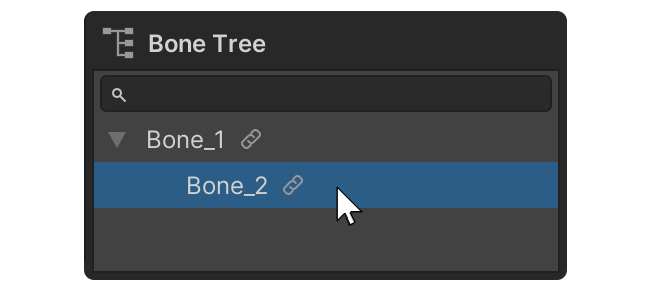

1.Select the desired bones in the Scene or Bone Tree area, Bind Bone List.
2.Launch the Envelope Tool.

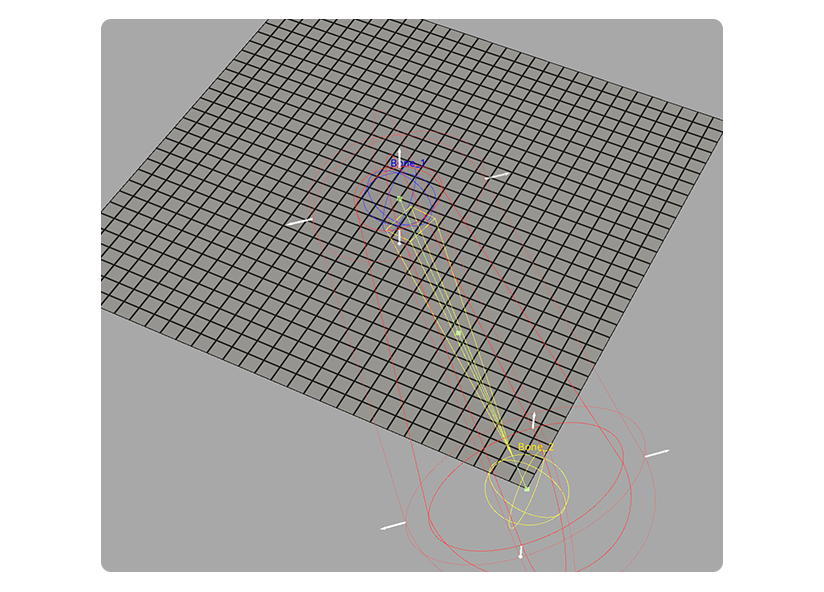

3.Change the size and position of the on-screen Envelope capsule as desired.

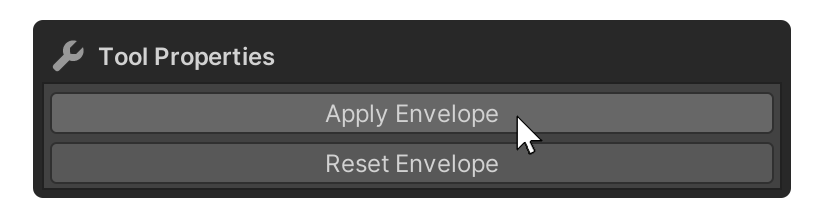

4.Press the Apply Envelope button.

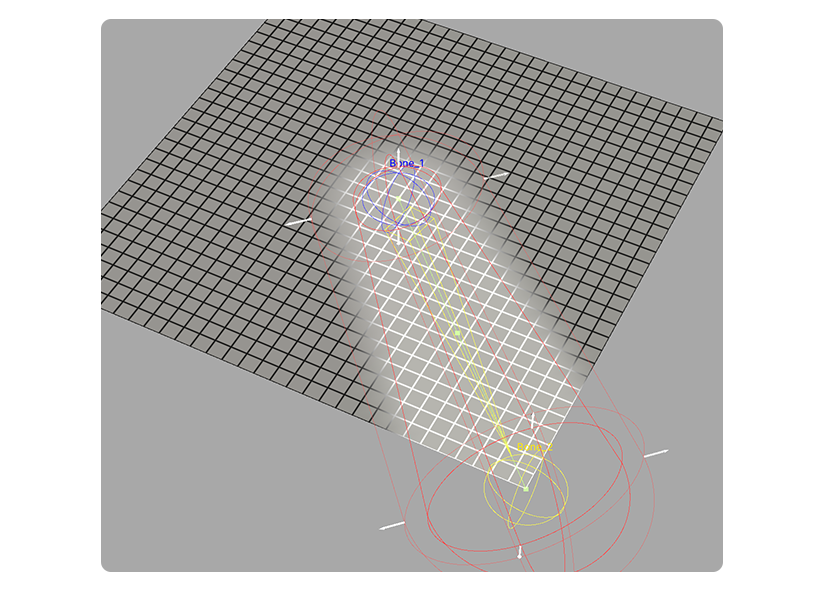

5.The Envelope is now weighted to.

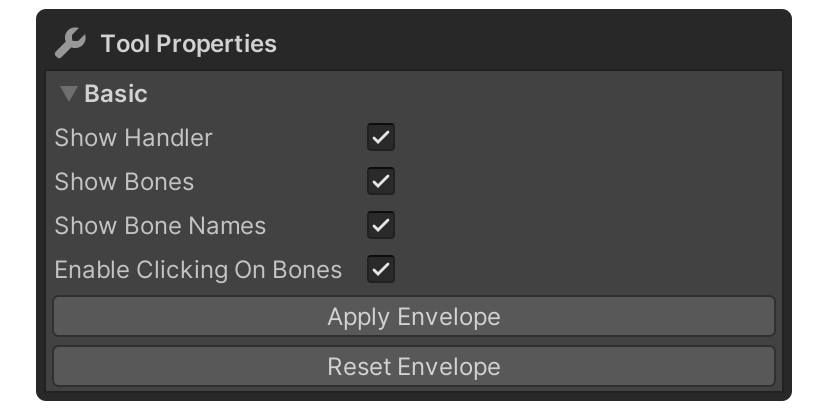

Properties

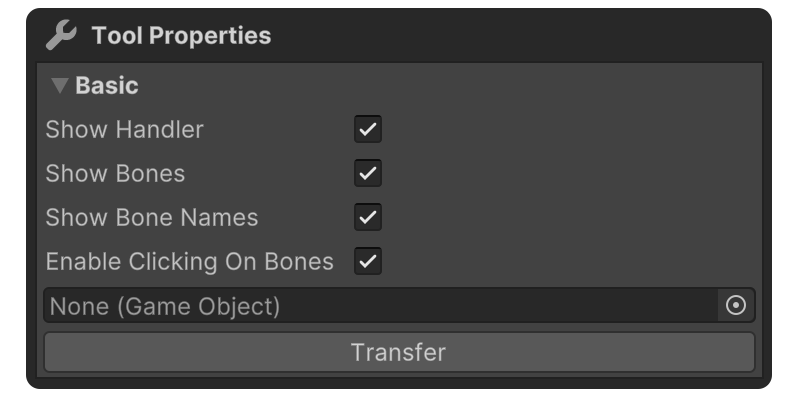

Basic
Properties for rigging convenience.
Show Handler
Shows or hides handlers for moving or rotating bones.
Show Bones
Property to show bones.
Show Bones Names
This property shows the names of the bones.
Enable Clicking On Bones
Property that allows you to set whether or not to enable selecting bones via Shift+Click.
Apply Envelope
This property sets the weight to match the currently set envelope.
Even if you change the shape of the envelope, it will not be applied unless you press the Apply Envelope button.
Reset Envelope
This property resets the currently set shape and position of the envelope.
