Linear Array Modifier

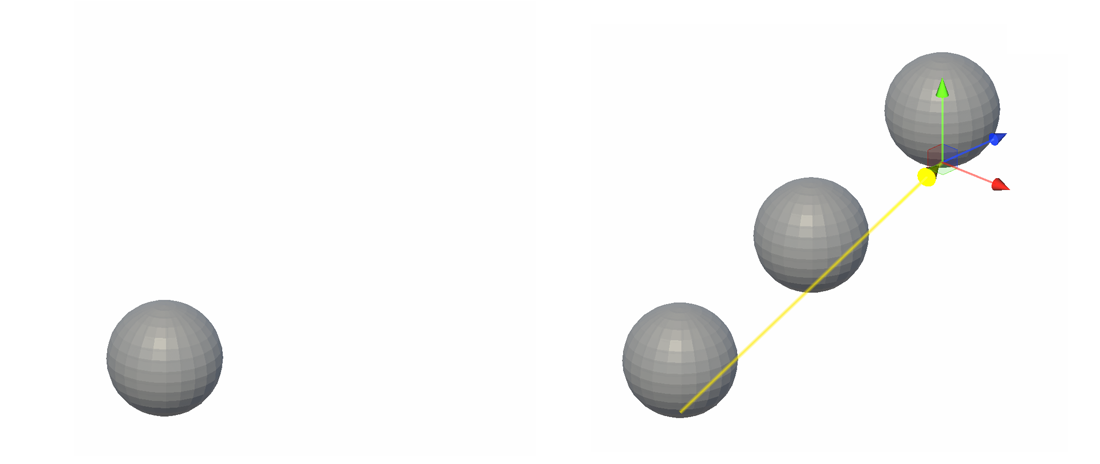

The Linear Array Modifier is a modifier that duplicates selected elements (Vertex, Edge, Face) and arranges them in a linear direction.
The Linear Array Modifier is a modifier that duplicates selected elements (Vertex, Edge, Face) and arranges them in a linear direction.
How to Use
- Click the Add Modifier button.
- Select the Linear Array modifier.
- Choose Length Type.
- Adjust the values as needed.

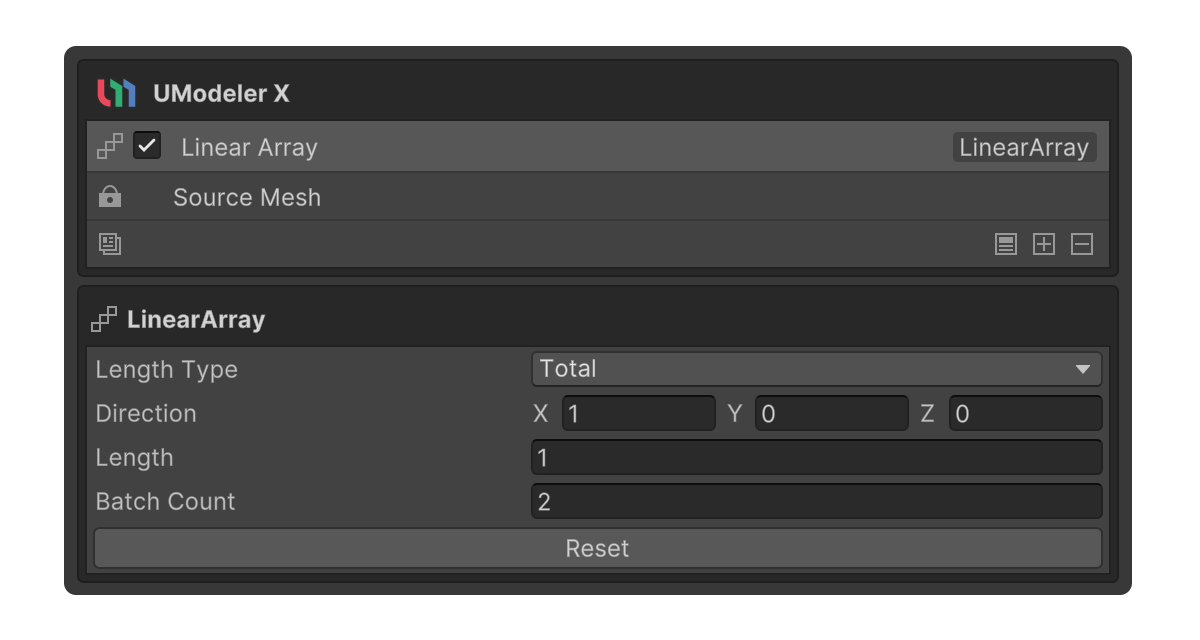

Properties
Length Type
This determines the position of the last object in the array. There are two types: Total and Interval.
- Total: The last object is positioned at the distance specified by the Total value.
- Interval: The last object is positioned based on the angle and batch count.
Direction
The array follows the 3D direction vector originating from the pivot of the original element.
Length
This is the distance between elements.
Batch Count
Sets the number of elements or objects to be created (from 2 to 1000).
