Align Selection Tool

The Multi Align Tool is a tool that aligns two selected objects based on their pivots.

---

How to Use

1.Select two UModeler X objects.

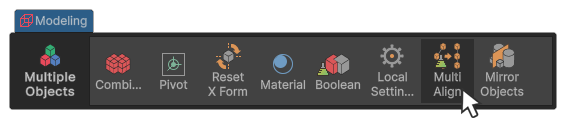

2.Run the Multl Align tool in the Multiple Objects group.

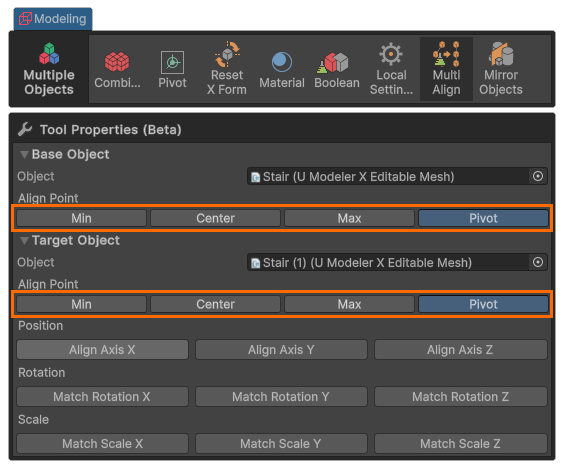

3.Select the pivot reference for each object.

4.Select the alignment method.

---

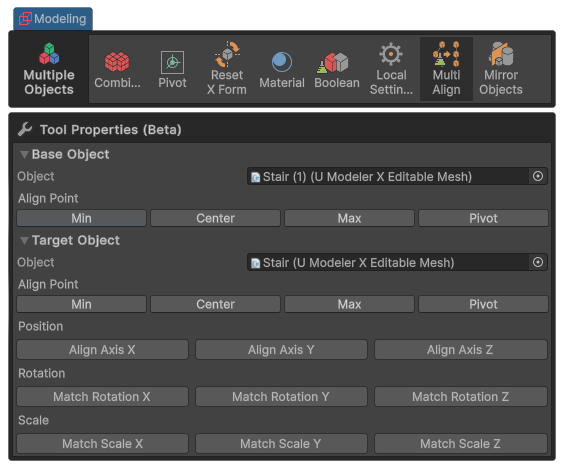

Properties

Min

This button sets the pivot position to the minimum value based on the world reference.

Center

This button sets the pivot position to the center of the object.

Max

This button sets the pivot position to the maximum value based on the world reference.

Pivot

This button sets the pivot position to the location of the gizmo displayed in the current scene.

Align Axis X

Aligns based on the X-axis position value of the parent object.

Align Axis Y

Aligns based on the Y-axis position value of the parent object.

Align Axis Z

Aligns based on the Z-axis position value of the parent object.

Match Rotation X

Aligns based on the X-axis rotation value of the parent object.

Match Rotation Y

Aligns based on the Y-axis rotation value of the parent object.

Match Rotation Z

Aligns based on the Z-axis rotation value of the parent object.

Match Scale X

Aligns based on the X-axis scale value of the parent object.

Match Scale Y

Aligns based on the Y-axis scale value of the parent object.

Match Scale Z

Aligns based on the Z-axis scale value of the parent object.

---

Example Usage
