Pivot Tool
Pivot Tool is a tool for setting the pivot location of an object, allowing the pivot to be changed to the object's Center, Top Center, Bottom Center, or the current location of the gizmo.
Pivot Tool is a tool for setting the pivot location of an object, allowing the pivot to be changed to the object's Center, Top Center, Bottom Center, or the current location of the gizmo.

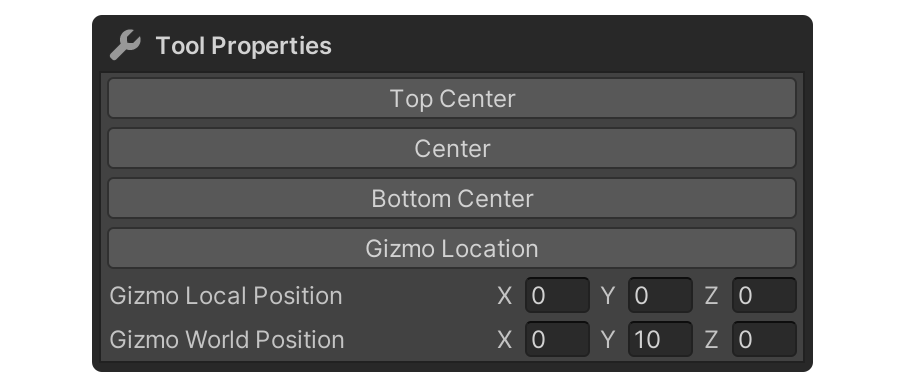

Properties
Top Center
A button that sets the pivot location to the Top Center of the object.

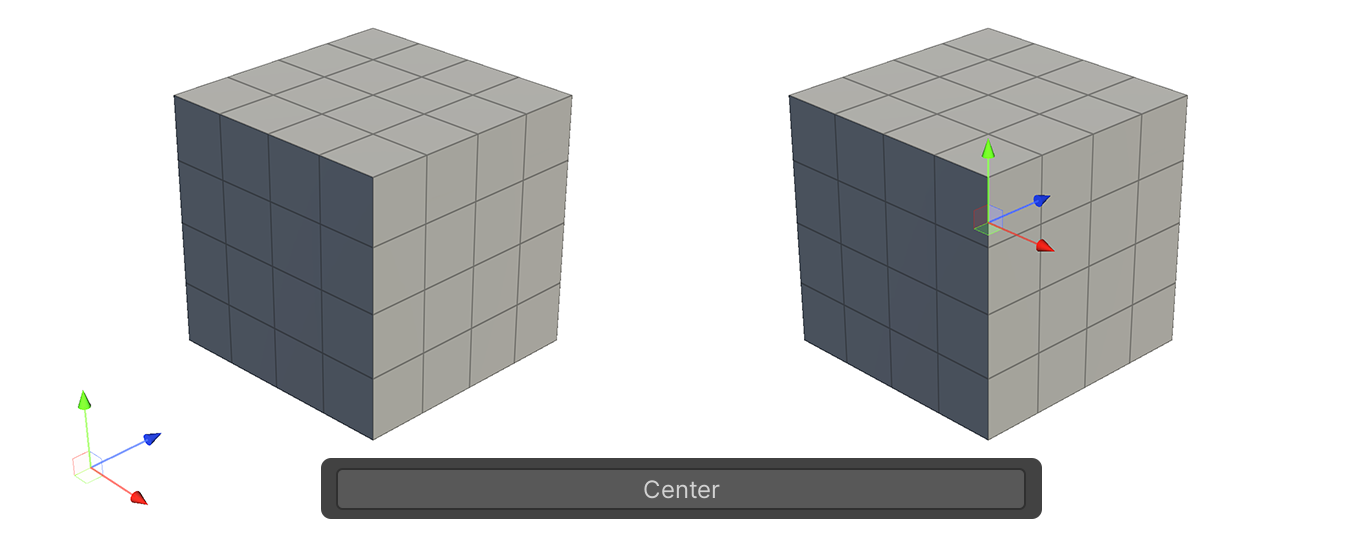

Center
A button that sets the pivot location to the Center of the object.
Bottom Center
A button that sets the pivot location to the Bottom Center of the object.

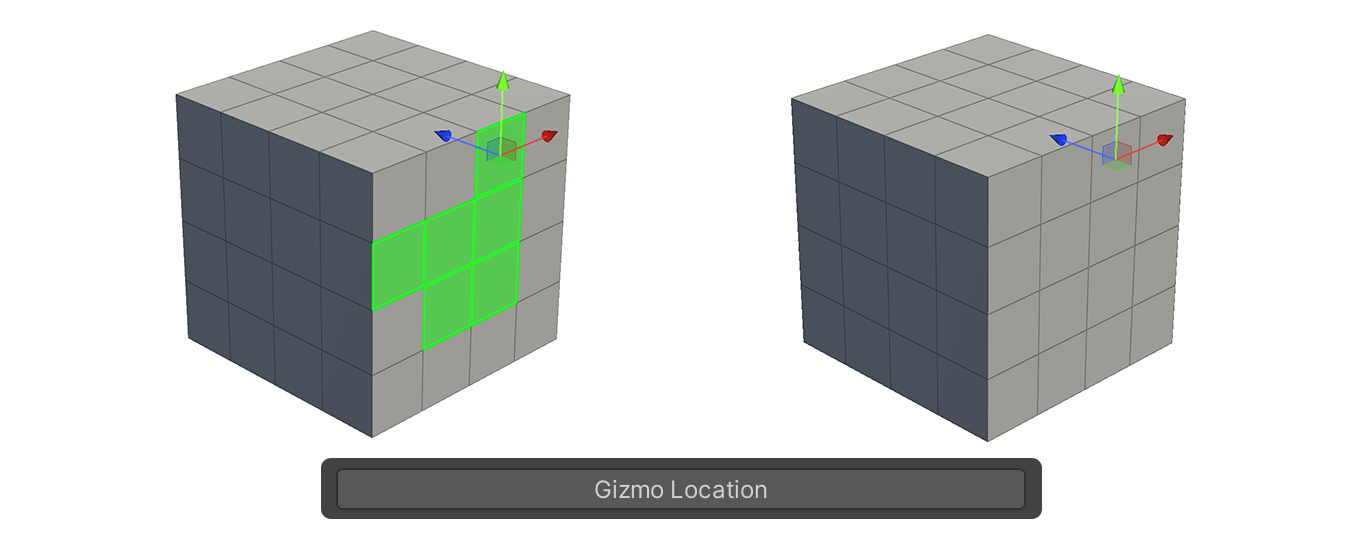

Gizmo Location
A button that sets the pivot location to the current location of the gizmo displayed in the scene.
After moving the displayed gizmo to the desired location, clicking the Gizmo Location button sets the object's pivot to the new location of the chosen gizmo.

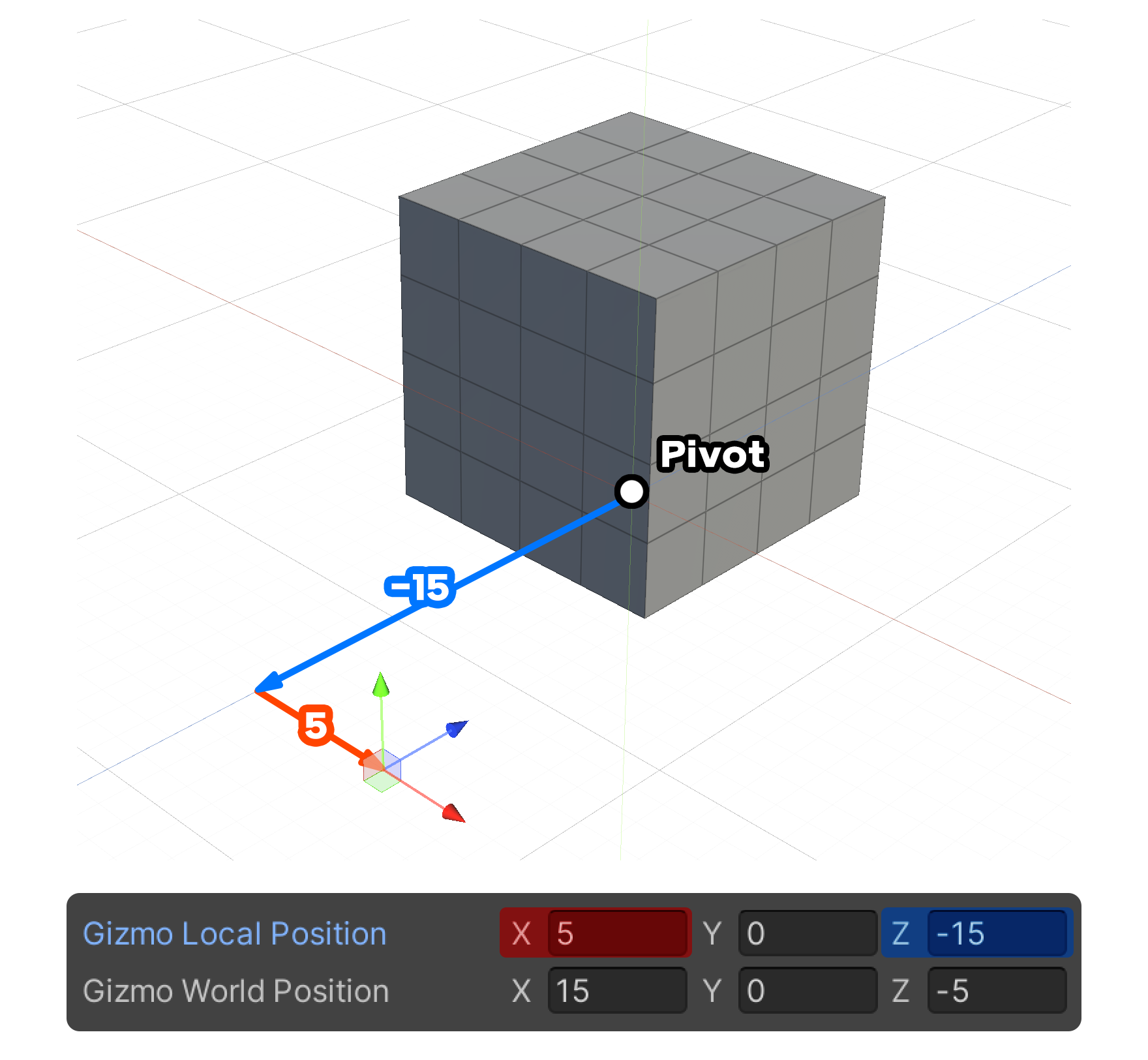

Gizmo Local Position
Gizmo Local Position shows the location of the gizmo within the object's local coordinate system.
It displays the relative position of how far the currently displayed gizmo is from the object's pivot.

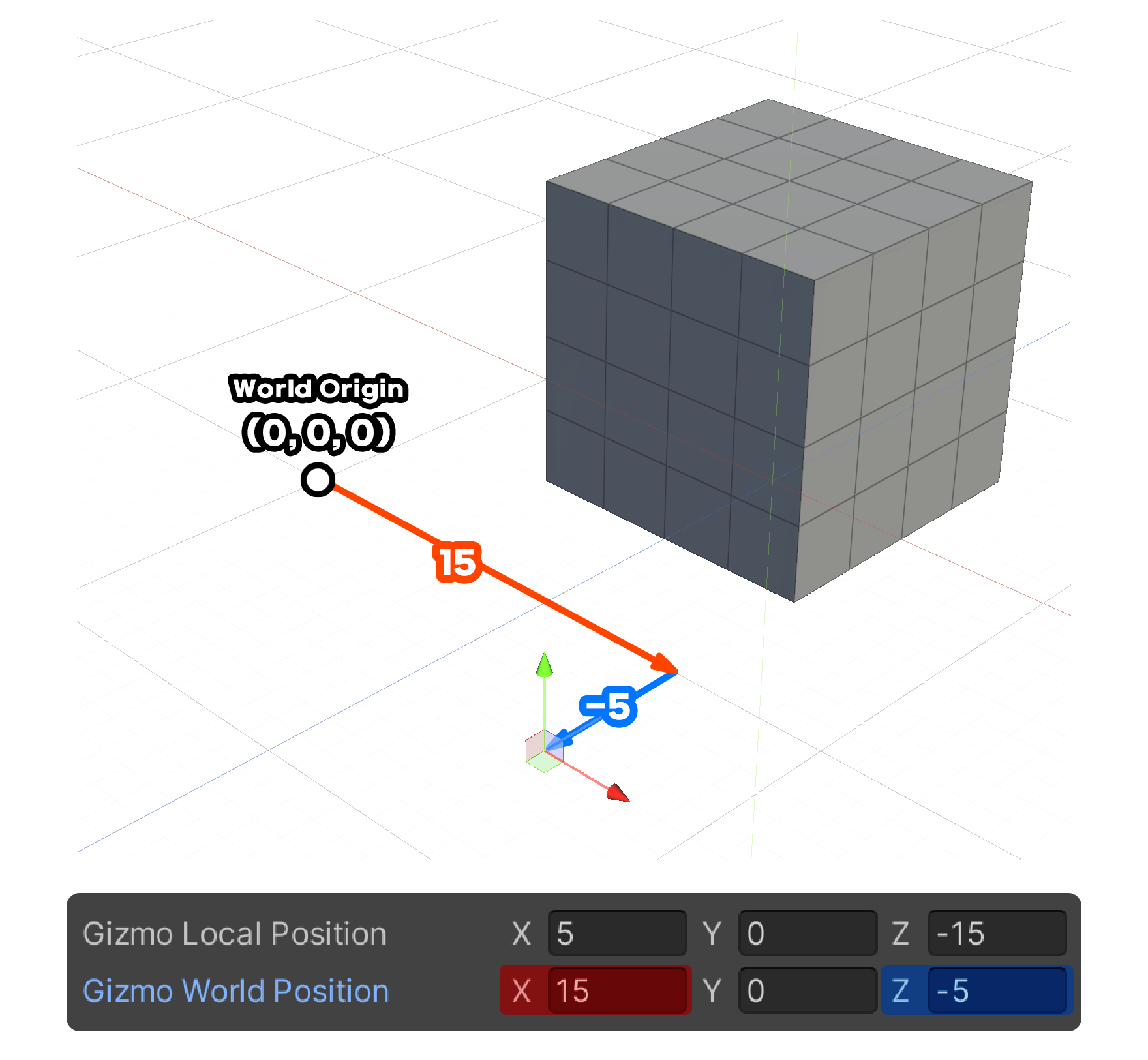

Gizmo World Position
Gizmo World Position shows the location of the gizmo within the scene's world coordinate system.
It displays the relative position of how far the currently displayed gizmo is from the world's origin, regardless of the object's local transformations.
Example Usage
Setting Pivot to Gizmo Location
Setting the pivot position using the Gizmo Location button after moving the gizmo
