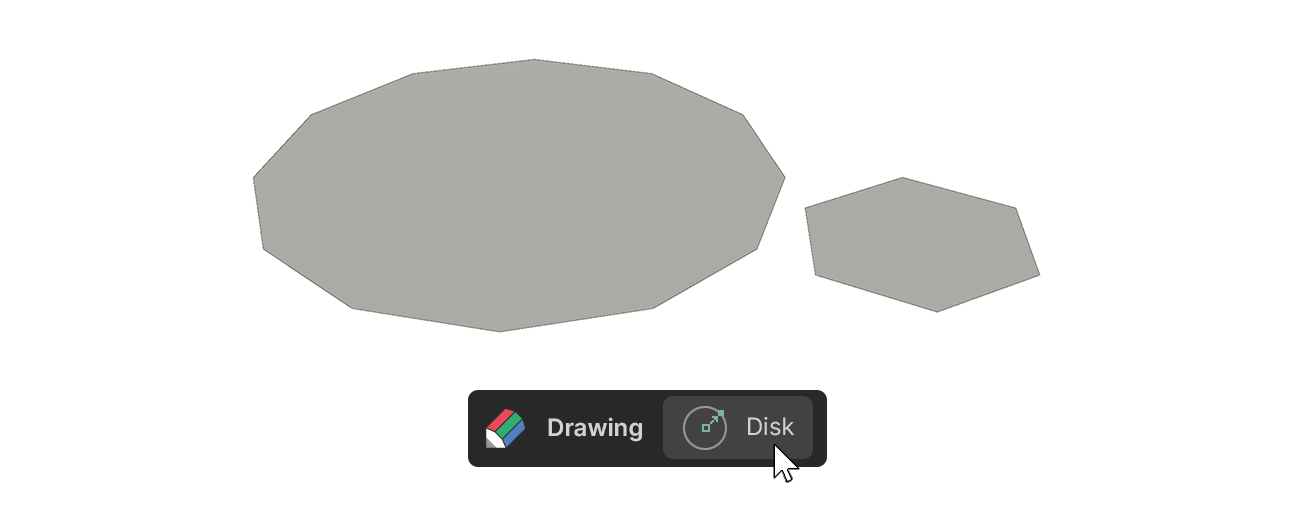

Disk Tool
The Disk tool is a tool for creating circular planar meshes.
The Disk tool is a tool for creating circular planar meshes.
How to use
The Disk Tool can create circular planes in two ways.
1.Click-Drag to create, edit
2.Create and edit using One Click Build

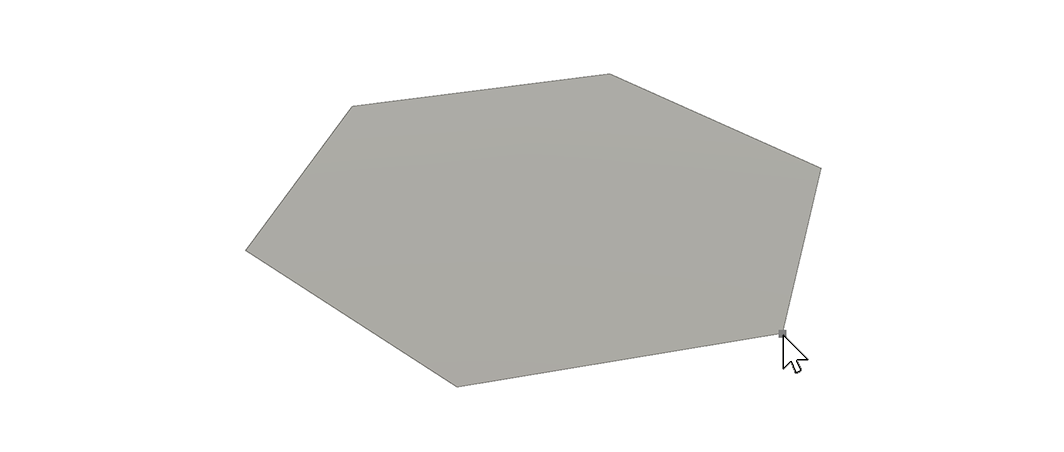

Click and drag to create, edit
1.Select the Disk Tool.
2.Click and drag the mouse on the scene to create a plane of the desired size.
3.Once the plane is the desired size, click to finish creating the mesh.
4.Adjust the properties of the Disk tool and select the element, or press another tool to finish.
Create, Edit via One Click Build and Properties
1.Select the Disk tool.
2.Enter the desired values in the Disk tool's properties.
3.Press the One Click Build button to add a shape to the scene.
4.Make any additional adjustments to the Disk tool's properties and select the element, or use another tool to finish.

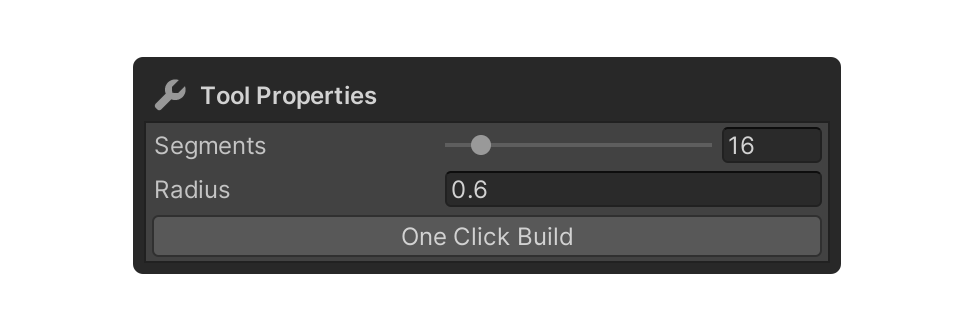

Properties

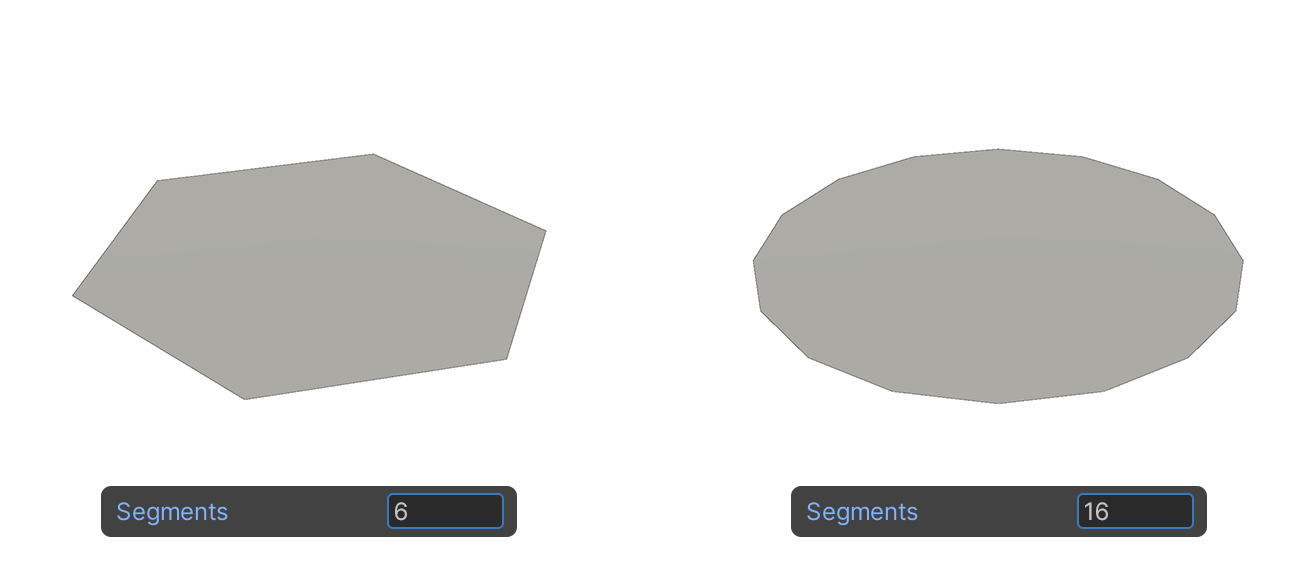

Segments
This property sets the number of perimeter segments of the generated shape.

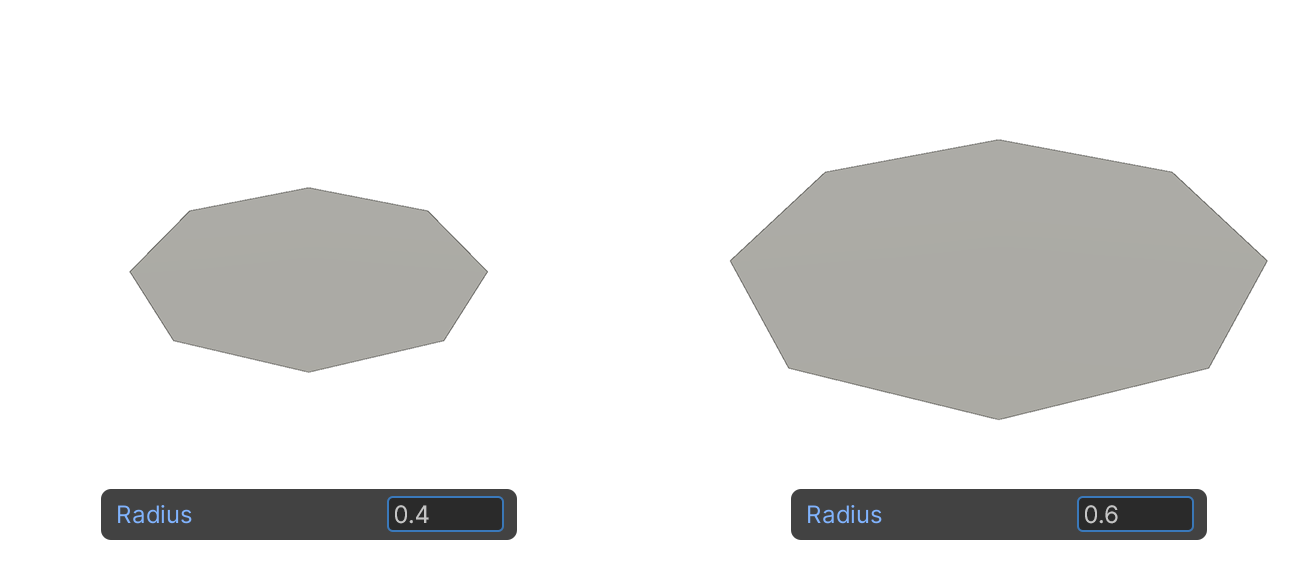

Radius
Property that sets the radius size of the generated shape, in meters.
